瑞典Friborg 热线点火测试仪 4680
商品详情
性能特点
技术参数

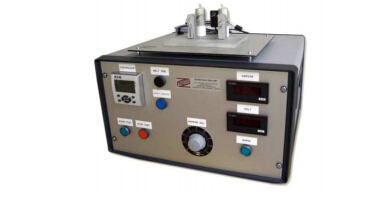

热销瑞典Friborg 热线点火测试仪 4680
Hot Wire Ignition test is a type of resistance test to fire for materials of
enclosures decorative parts.
The sample is put on a specified stand an element wire is winded
around the material to be tested.
Technical specification
? The test sample is sourced by AC power
? Element Wire 80% Nickel 20% Chromium – 3 bobbins included
? Power consumption app. 0.3 W/mm
? PLC with time intervals burning time for sample
? Flame sensor indicates start/stop burning
? Digital display with preset testing alternatives
? 16 test results are memorized in the PLC
? Variable transformer
? Start stop button for testing
? Stand for the sample
? Digital A- V-meter
? Terminal to connect the element wire
热销瑞典Friborg 热线点火测试仪 4680
Optional – Cabinet for Hot Wire Ignition Tester
? Cabinet 0,5 m3
according to requirement of standard
? Transparent door – access holes to operate without opening the
door
? Fan blow out gases cabinet after testing by manual push/pull
button
? Weight app. 60 kg
? LxWxH = 1130x780x1000 mm
