瑞典Friborg泄漏电流测试Model 2100E
Leakage Current Tester
Model 2100 (E)
Test device for leakage current measurement on accessible parts. To
be used with a separate voltmeter multimeter. ( included)
Model 2100E is also equipped with power connection for quick
measurements on cord-connected test items.
NOTE. It is recommended to use a safety insulating transformer as
power supply for the test item.
Technical Specifications
Model 2100 2100E
? Test circuit according to figure 4 of IEC 60990
? 4 mm banana type connection for voltmeter
? 4 mm banana type connection for the test item

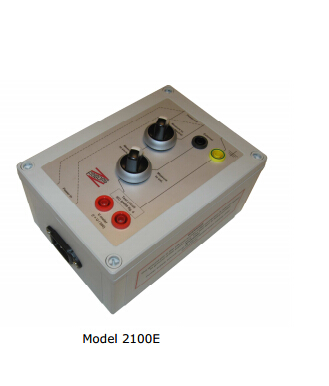

Model 2100E
? Same as Model 2100 :
? IEC C14 power inlet for power supply by flexible cord
? Schuko-power outlet socket for connection of the test item
? Switches for measuring to Live Neutral line
? External connections for test items using the socket outlet
