球压测试仪 4710

内容概述：

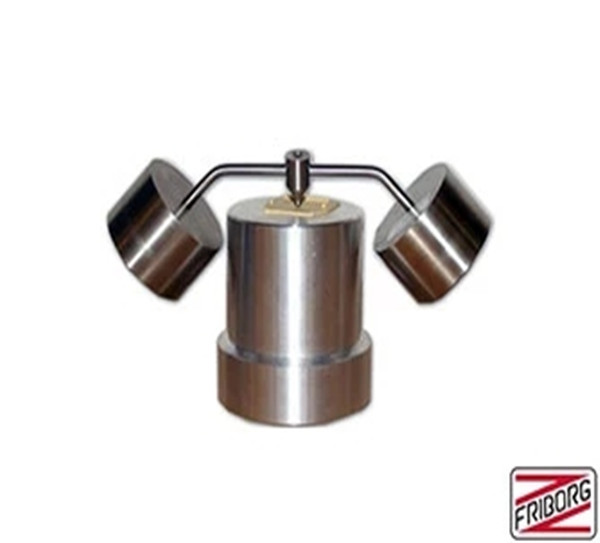

4710型球压测试仪

球压试验机用于测试绝缘材料的热性能。将测试样品放入烘箱中，将钢球压在表面上。测量钢球的压痕，看是否符合要求。

用于测试标准：
IEC 60695-10-2
IEC 60335-1
IEC 60950
IEC 61010
IEC 60598-1
IEC 61558-1
IEC 60320-1 Clause 24.1.2
IEC 60601-6

The ball pressure test is made on plastic materials to check their resistance to heat.

The test specimen is placed in an oven a weight

with a ball-shaped tip is placed onto the test specimen.

If the test specimen becomes soft, the ball will make a dent.

By measuring the diameter of this dent, the heat resistance of the material can be classified.

Technical Specification • Ball radii 2,5 mm

 • Total force/weight of 20 N •

 •The test is made in a heating cabinet (sold separately)

• To be placed on a suitable support (sold separately, see below)

Optional – Test Specimen Support

• Solid stainless steel cylinder

• Hole for thermocouple (sold separately, see below)

• Diameter app. 50 mm

• Height app. 100 mm

Optional – Temperature kit

• Thermocouple (Type K) for insertion in test specimen support

• Digital hand held thermometer
