冲击锤型号 5111 / 5112 / 5113

Impact Hammer 模拟对电器和组件外壳表面的机械冲击。

用于测试标准:
IEC 60065 Clause 12.1.3
IEC 60068-2-75
IEC 60335-1 Clause 21

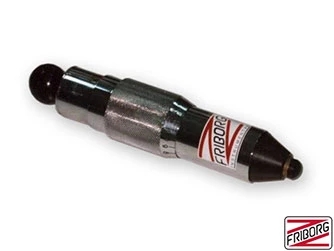

The spring operated Impact Hammer simulates mechanical impact to the

surface of the enclosures of electrical appliances  components.

A compressed spring accelerates a hammerhead to hit the sample undergoing testing.

‘’The spring is released  a lock mechanism by pressing a conical top of the hammer against the sample


Technical Specification Model 5111

• High precision instrument

• Variable energy setting 0.2 – 1.00 Joule (Nm)

• Adjustment ring with scale

 • Weight of hammerhead 250 g

 • Weight 3 kg



Technical Specification Model 5112

 • High precision instrument

• One force Impact Hammer

 • Available with any force between 0.2  1.0 Joule (Nm) (Please specify desired force when ordering)

• Weight 2 k



Technical Specification Model 5113

• High precision instrument

 • One force Impact Hammer; 2.0 Joule (Nm) ± 0,05

 • Weight of spherical steel hammerhead 500 g

 • Radius for spherical segment is 25 mm

 • Weight 3,6 kg
